PRIMEWELD TIG225X 225 Amp IGBT AC DC Tig/Stick Welder

The PRIMEWELD TIG225X is an advanced welding machine catering to professional and hobbyist welders. It features a powerful 225 Amp output and offers a versatile range of welding modes, including AC/DC TIG and Stick welding. With its IGBT technology, pulse welding capabilities, and robust construction, the TIG225X is designed to deliver high performance and reliability.

The PRIMEWELD TIG225X is an advanced welding machine designed for various applications. Its 225 Amp output allows it to handle light and heavy-duty welding tasks. The machine supports AC/DC TIG welding and Stick welding, making it versatile and adaptable to different welding needs. Including pulse welding functionality further enhances its capability, allowing precise control over the welding process. This welder is equipped with a CK17 Flex Torch and cable, providing flexibility and ease of use.

Specifications

Input Voltage: 110V/220V
Output Current Range: 10-225A
Duty Cycle: 40% at 225A
Welding Processes: AC/DC TIG, Stick
Pulse Frequency: Adjustable
Included Accessories: CK17 Flex Torch, Stick electrode holder, ground clamp, power adapter, user manual

PRIMEWELD TIG225X 225 Amp IGBT AC DC
PRIMEWELD TIG225X 225 Amp IGBT AC DC

Key Features of the PRIMEWELD TIG225X

  • 225 Amp Power Output: Handles a wide range of welding tasks, from light to heavy-duty.
  • IGBT Technology: Ensures efficient and stable performance.
  • AC/DC TIG and Stick Welding: Offers versatility for different welding applications.
  • Pulse Welding: Provides precise control over the welding process.
  • CK17 Flex Torch and Cable: Enhances flexibility and ease of use.

Comparative Analysis

Compared to similar models, the PRIMEWELD TIG225X stands out with its comprehensive feature set and robust performance. Many welders in the market do not offer the combination of AC/DC TIG and Stick welding modes with such a high power output. Including pulse welding functionality further enhances its capability, providing better control and precision. The CK17 Flex Torch and cable and the 3-year warranty add significant value, making the TIG225X a competitive choice in the welding market.

Design and Build Quality

Aesthetic and Ergonomic Design

The PRIMEWELD TIG225X features a sleek, functional design that balances aesthetics and ergonomics. Its compact and weightless build makes it portable and easy to handle, while the ergonomic handle ensures comfortable carrying. The control panel is designed for user convenience, with clearly labeled buttons and knobs for easy adjustment of settings. The digital display delivers clear visibility of the current parameters, enhancing the overall user experience.

Material Quality and Durability

Constructed from high-quality materials, the TIG225X is built to withstand rigorous use. The durable housing protects internal components from dust, moisture, and impact, ensuring long-term reliability. The CK17 Flex Torch and other accessories are also made from robust materials to endure high temperatures and frequent use without compromising performance.

Pros

High-frequency start for precise and clean arc initiation

Dual voltage capability for flexible power source options

Pulse welding functionality for better heat control and cleaner welds

Versatile welding modes (TIG and Stick) for various applications

Robust construction and high-quality materials for durability

Cons

It can be heavy to transport, especially for portable use.

Digital displays may be challenging to read in bright light conditions.

For beginners, the initial setup may require careful reading of the manual.

Welding Performance of the PRIMEWELD TIG225X

AC/DC TIG Welding

In AC/DC TIG welding mode, the PRIMEWELD TIG225X delivers consistent and high-quality performance. The AC mode is handy for welding aluminum and other non-ferrous metals, while the DC mode is excellent for welding steel and stainless steel. The high-frequency start enables smooth arc initiation, reducing the risk of contamination. The pulse welding functionality allows better control over the heat information, resulting in purer and more precise welds.

Stick Welding

The Stick welding mode of the TIG225X is equally impressive, offering reliable performance for various applications. Its 225 Amp output allows it to weld thicker materials effectively, making it suitable for heavy-duty tasks. The welder is compatible with multiple electrodes, providing versatility for different welding requirements.

Performance and Efficiency

Performance Under Different Conditions

The TIG225X performs reliably under various conditions thanks to its dual voltage capability. The welder adjusts its performance to deliver optimal results, whether connected to a 110V household outlet or a 220V industrial power source. This flexibility is especially advantageous for users who operate in different environments and need a machine that can adapt to varying power supplies.

Efficiency in Various Welding Tasks

Efficiency is a critical factor in welding, affecting both productivity and cost. The TIG225X’s high-duty cycle allows for extended periods of welding without overheating, reducing downtime and increasing productivity. The pulse welding function enhances efficiency by enabling precise control over the heat input, minimizing material waste, and reducing the need for post-weld clean-up.

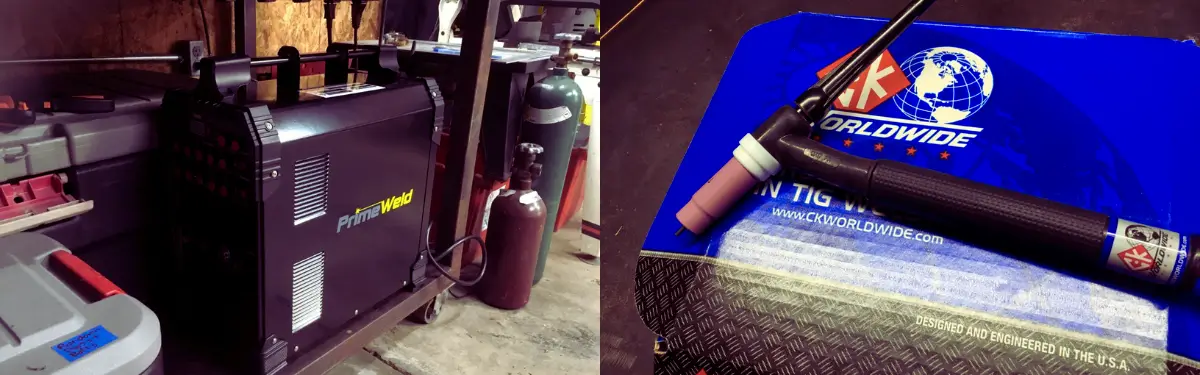

Applications and Use Cases

Common Applications in Different Industries

The PRIMEWELD TIG225X is suitable for a wide range of applications across various industries:

  • Automotive Industry: Used for repairing and fabricating automotive parts, including exhaust systems, frames, and body panels.
  • Construction and Infrastructure: Ideal for constructing metal frameworks, reinforcing structures, and performing on-site repairs.
  • Metal Fabrication and Manufacturing: Suitable for producing high-quality metal products, from custom parts to large-scale fabrications.
  • DIY and Hobbyist Projects: Perfect for home improvement projects, artistic metalwork, and small-scale repairs.

Specific Use Cases and Success Stories

  • Automotive Restoration: A classic car enthusiast used the TIG225X to restore a vintage vehicle, successfully repairing rusted sections and fabricating custom parts.
  • Metal Art: An artist utilized the precise control of the pulse welding mode to create intricate metal sculptures, achieving smooth and clean welds.
  • Home Repairs: A DIY homeowner employed the welder for various home improvement tasks, including fixing metal gates and constructing garden structures.

Setup and Installation

Step-by-Step Guide to Setting Up the Welder

  1. Unpacking and Initial Inspection: Carefully unpack the welder and inspect all components for any damage during shipping.
  2. Connecting to Power Sources: Depending on the available power source, connect the welder to either a 110V or 220V outlet using the appropriate adapter.
  3. Attaching Accessories: Securely attach the CK17 Flex Torch, stick electrode holder, and ground clamp to their respective ports.
  4. Preparing for Welding: Adjust the settings on the control panel according to the welding task and material type.

Installation Requirements and Tips

  • Power Source Considerations: Ensure the power source matches the welder’s voltage requirements and provides a stable supply.
  • Workspace Setup: Set up the welder in a well-ventilated area with sufficient movement and material access space.
  • Safety Precautions: Wear appropriate protective gear, including welding gloves, helmets, and apron. Ensure the workspace is free from flammable materials.

Operating the PRIMEWELD TIG225X

Basic Operation Guide

  1. Powering On: Turn on the welder by pressing the power switch and ensuring the control panel lights up.
  2. Selecting the Welding Mode: Use the mode selection button to choose between AC TIG, DC TIG, or Stick welding modes.
  3. Setting Parameters: Adjust the current, voltage, and pulse settings according to the material and thickness.
  4. Arc Initiation: Using the HF, initiate the arc without touching the workpiece for TIG welding.
  5. Welding Process: Maintain a consistent arc length and move steadily to create a uniform weld bead.
  6. Cooling Down: After welding, allow the machine to cool down before turning it off.

Advanced Techniques for Professional Use

  • Pulse Welding: Use pulse welding to control heat input and minimize distortion, especially on thin materials.
  • Multi-Pass Welding: For thicker materials, use multi-pass welding to ensure proper penetration and weld strength.
  • Back Purging: When welding stainless steel or other reactive metals, use back purging to prevent oxidation and contamination.
Operating the PRIMEWELD TIG225X

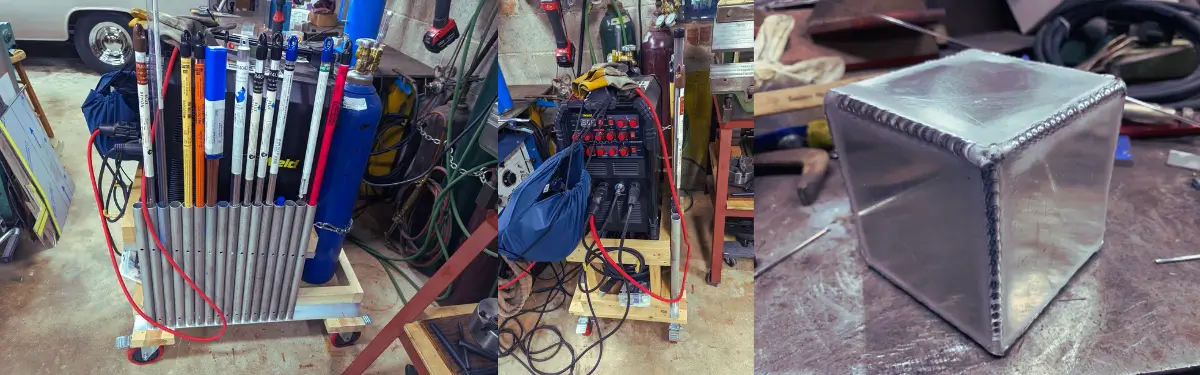

Safety Precautions and Best Practices

  • Protective Gear: Consistently wear appropriate defensive gear, including a welding helmet, gloves, apron, and safety glasses.
  • Ventilation: Ensure proper ventilation to avoid inhaling harmful fumes and gases produced during welding.
  • Fire Safety: Keep a blaze extinguisher nearby and confirm the workspace is free from flammable materials.
  • Electrical Safety: Check all electrical connections for stability and avoid using damaged cables or connectors.

Maintenance and Care

Routine Maintenance Tasks

  • Cleaning: Regularly clean the welder’s exterior and vents to prevent dust buildup.
  • Inspecting Cables and Connectors: Check all cables and connectors for wear and damage, replacing faulty components.
  • Replacing Consumables: Replace worn-out consumables like electrodes and nozzles to maintain optimal performance.

Long-Term Care for Prolonged Lifespan

  • Storage: Store the welder in a dry, cool place away from moisture and direct sunlight.
  • Preventive Maintenance: Schedule regular inspections and maintenance checks to remember and manage potential problems before they evolve into significant issues.
  • Maximizing Machine Lifespan: Avoid overloading the machine and adhere to the recommended duty cycle to prevent overheating and damage.

Troubleshooting Common Issues

  • Arc Starting Problems: Check the HF start system and ensure the tungsten electrode is clean and properly positioned.
  • Inconsistent Weld Quality: Adjust the welding parameters and ensure the workpiece is clean and properly prepared.
  • Overheating: Allow the machine to cool down and check the duty cycle. Ensure adequate ventilation around the welder.

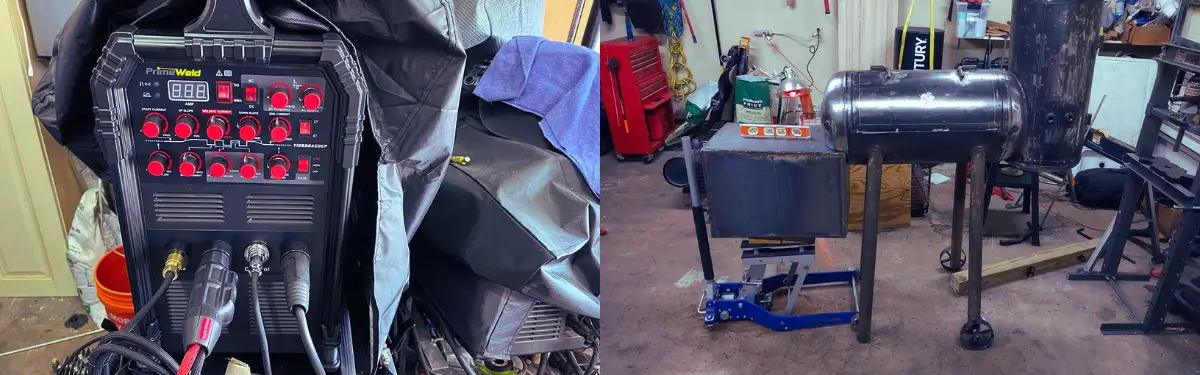

Accessories and Add-Ons

Standard Accessories Included

The PRIMEWELD TIG225X comes with a range of standard accessories that enhance its functionality:

  • CK17 Flex Torch: Provides precise control for TIG welding.
  • Stick Electrode Holder: Allows for easy electrode replacement and secure connections.
  • Ground Clamp: Ensures a stable and reliable ground connection.
  • Power Adapter: Enables switching between 110V and 220V power sources.
  • User Manual: Provides detailed instructions for setup, operation, and maintenance.

Optional Accessories for Enhanced Performance

  • Foot Pedal: Allows for hands-free control of welding parameters, improving precision and ease of use.
  • Welding Cart: Provides a convenient mobile storage solution for the welder and accessories.
  • Water Cooler: Helps manage heat during extended welding sessions, preventing overheating.
  • Gas Flow Meter: Ensures accurate gas flow rates for optimal welding conditions.

Tips and Tricks for Optimal Use

Expert Tips for Getting the Most Out of the Welder

  • Practice Makes Perfect: Spend time practicing on scrap materials to get a feel for the machine and fine-tune your settings.
  • Use Quality Consumables: Invest in high-quality electrodes, nozzles, and other consumables to ensure consistent performance and weld quality.
  • Adjust Settings: Experiment with different settings to find the optimal parameters for each welding task and material type.
  • Maintain Cleanliness: Keep the workpiece, electrode, and nozzle clean to prevent contamination and ensure smooth welding.

Common Mistakes to Avoid

  • Improper Settings: Avoid using incorrect settings for the material and thickness, leading to poor weld quality and increased material waste.
  • Neglecting Safety: Always wear appropriate protective gear and ensure a safe workspace to prevent accidents and injuries.
  • Overloading the Machine: Adhere to the recommended duty cycle to control overheating and injury to the welder.
  • Skipping Maintenance: Regularly inspect and maintain the welder to ensure long-term performance and reliability.

Advanced Welding Techniques

In-Depth Look at Advanced TIG Welding Techniques

  • Back Purging: Use back purging when welding stainless steel or other reactive metals to prevent oxidation and contamination. This involves introducing an inert gas to the backside of the weld to protect the molten metal from atmospheric gases.
  • Walking the Cup: A technique used in pipe welding where the welder rests the nozzle cap on the pipe and moves it in a walking motion, creating a consistent and uniform weld bead.
  • Hot Start: A feature that temporarily increases current at the weld’s start to improve arc initiation and prevent sticking.

How the PRIMEWELD TIG225X Supports Advanced Welding

The PRIMEWELD TIG225X’s advanced features, such as pulse welding and high-frequency start, make it well-suited for advanced welding techniques. The precise control over current and voltage settings allows for fine-tuning the welding process, enabling welders to achieve high-quality results even in challenging applications. The welder’s robust construction and high-duty cycle ensure consistent performance during extended welding sessions.

How the PRIMEWELD TIG225X Supports Advanced Welding

Environmental Impact

Energy Efficiency and Environmental Considerations

The PRIMEWELD TIG225X is designed with power efficiency in mind, reducing general energy consumption during welding tasks. The dual voltage capability allows for optimized performance based on the available power source, further enhancing energy efficiency. Additionally, the welder’s pulse welding functionality minimizes heat input, reducing the risk of material distortion and waste.

How to Minimize Environmental Impact While Welding

  • Use Eco-Friendly Consumables: Opt for environmentally friendly electrodes and welding materials that produce fewer harmful emissions.
  • Proper Ventilation: Ensure adequate ventilation to disperse harmful fumes and gases produced during welding.
  • Energy Conservation: Turn off the welder when not in use and use energy-efficient settings to reduce power consumption.
  • Recycling: Properly dispose of used consumables and materials and recycle scrap metal whenever possible.

Future of Welding Technology

Trends in Welding Technology

The welding industry continually evolves, with new technologies and innovations emerging to enhance welding processes and outcomes. Some key trends include:

  • Automation and Robotics: Increased use of automated welding systems and robotic welders for precision and efficiency.
  • Advanced Materials: Development of new materials and alloys that offer improved strength, durability, and weldability.
  • Innovative Welding Systems: Integrating sensors and artificial intelligence to monitor and optimize welding parameters in real-time.

How the PRIMEWELD TIG225X is Innovating in the Welding Space

The PRIMEWELD TIG225X incorporates several innovative features, such as high-frequency start, pulse welding, and dual voltage capability, that align with current trends in welding technology. These advancements enhance the welder’s performance, precision, and versatility, making it a valuable tool for current and future welding applications.

Frequently Asked Questions (FAQs)

What are the welding modes available on the PRIMEWELD TIG225X?

The PRIMEWELD TIG225X supports AC/DC TIG welding and Stick welding, providing versatility for various welding tasks.

What is the dual voltage capability of the PRIMEWELD TIG225X?

The TIG225X operates on 110V and 220V power sources, offering flexibility for different environments and power supplies.

How does the high-frequency (HF) start to benefit TIG welding?

The HF start feature enables smooth and precise arc initiation without physical contact between the tungsten electrode and the workpiece, reducing the risk of contamination and ensuring cleaner welds.

What is pulse welding, and why is it useful?

Pulse welding reserves between high and low winds during the welding process, preventing the heat input into the weld pool. This helps minimize distortion, especially on thin materials and improves the appearance and quality of weld beads.

What is the duty cycle of the PRIMEWELD TIG225X?

The TIG225X has a duty cycle of 40% at 225 Amps, allowing for extended periods of welding without overheating.

Can the PRIMEWELD TIG225X weld aluminum?

The TIG225X can be welded aluminum, mainly with appropriate settings and techniques. Its high-frequency start and pulse welding capabilities enhance the quality of aluminum welds.

What accessories are included with the PRIMEWELD TIG225X?

The TIG225X typically has a CK17 Flex Torch, stick electrode holder, ground clamp, power adapter for dual voltage operation, and a user manual.

Is the PRIMEWELD TIG225X suitable for both professional and hobbyist use?

Yes, the TIG225X is designed to meet the needs of both professional welders and hobbyists, offering advanced features and robust performance for various welding applications.

How easy is it to switch between welding modes on the PRIMEWELD TIG225X?

Switching between welding modes is straightforward and can typically be done with a button on the control panel, allowing users to adapt to different welding tasks quickly.

What are some safety considerations when using the PRIMEWELD TIG225X?

Still, wear appropriate unique protective equipment (PPE), provide proper ventilation, control flammable materials away from the welding area, and follow manufacturer guidelines for equipment setup and operation to ensure safe welding practices.

Conclusion

The PRIMEWELD TIG225X is a versatile and powerful welding machine designed to meet the diverse needs of welders across various industries. Its advanced features, including high-frequency start, pulse welding, and dual voltage capability, make it a valuable tool for achieving high-quality welds on multiple materials. With its robust construction, intuitive controls, and exceptional performance, the TIG225X offers excellent value for money and stands out as a top choice in the welding market. Whether you’re a professional welder or a hobbyist, the PRIMEWELD TIG225X provides the precision, reliability, and versatility to tackle any welding project confidently.
