How to Use Welder Machine: A Quick and Easy Tutorial

HOW TO USE WELDER MACHINES

How to Use Welder Machine: Welder is a fundamental skill in metalworking that involves the process of joining materials, usually metals or thermoplastics, by causing coalescence. This comprehensive guide will provide you with the basics and beyond, making the art of welding approachable, whether you’re a beginner or need a refresher. We will cover various welding techniques, safety precautions, setup procedures, and more.

Best Stick Welder Table of Contents

What is Welding?

Welding is a fabrication process that joins materials, typically metals or thermoplastics, by using high heat to melt the parts together and allowing them to cool, causing fusion. Welding is distinct from lower temperature metal-joining techniques such as brazing and soldering, which do not melt the base metal.

History of Welding

The origins of welding can be traced back to the Bronze Age and Iron Age when forge welding was developed. Modern welding as we know it began in the 19th century with the invention of arc welding and the introduction of electricity. Key milestones include:

  • 1800s: Sir Humphry Davy discovers the electric arc.
  • Late 1800s: Nikolai Benardos and Stanislav Olszewski patent carbon arc welding.
  • Early 1900s: Development of metal arc welding.
  • Mid-20th century: Introduction of MIG and TIG welder.

Applications of How to Use Welder Machine

Welding is used in a variety of industries, including:

  • Construction (buildings, bridges, infrastructure)
  • Automotive and Transportation (vehicles, ships, trains)
  • Aerospace (aircraft manufacturing)
  • Energy (oil rigs, pipelines, power plants)
  • Manufacturing (machinery, equipment)
Types of Welding Machines

Types of Welding Machines

Shielded Metal Arc Welding (SMAW)

Also known as stick welding, SMAW uses a consumable electrode coated in flux to lay the weld. An electric current is used to strike an arc between the electrode and the metals to be joined.

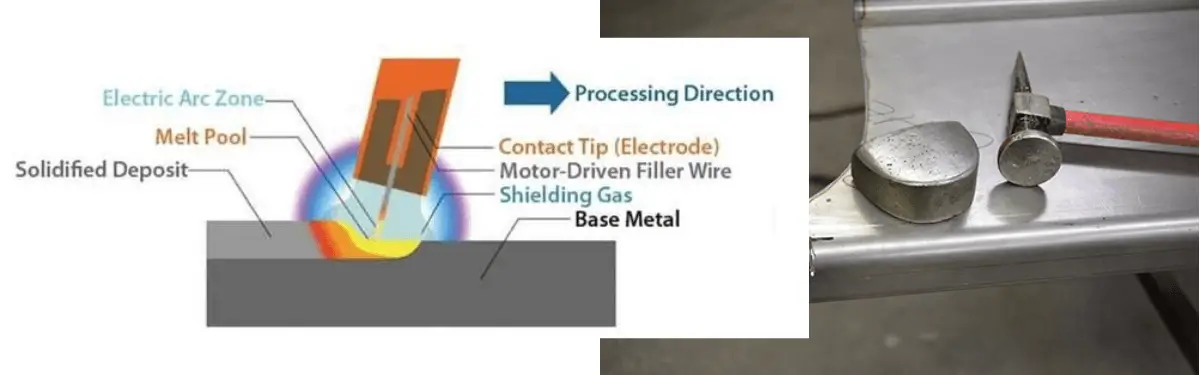

Gas Metal Arc Welding (GMAW/MIG)

MIG Welder uses a continuously fed wire electrode and a shielding gas to protect the weld pool from contamination. It is known for its speed and ease of use.

Gas Tungsten Arc Welding (GTAW/TIG)

TIG welding uses a non-consumable tungsten electrode to produce the weld. The weld area is protected from atmospheric contamination by a shielding gas, usually argon.

Flux-Cored Arc Welding (FCAW)

FCAW is similar to MIG welding but uses a special tubular wire filled with flux. This allows welding without an external shielding gas, making it suitable for outdoor conditions.

Submerged Arc Welding (SAW)

SAW involves forming an arc between a continuously fed electrode and the workpiece, with a blanket of granular fusible flux to protect the weld from contamination.

Others

  • Plasma Arc Welding: Uses a plasma torch to create a highly focused arc.
  • Laser Welding: Uses a laser beam to melt and join materials, offering high precision.

Safety Precautions For How To Use Welder Machine

Personal Protective Equipment (PPE)

  • Welding Helmet: Protects eyes and face from UV rays and sparks.
  • Gloves: Heavy-duty, heat-resistant gloves.
  • Apron/Jacket: Flame-resistant clothing to protect against sparks and heat.
  • Boots: Steel-toed boots for foot protection.
  • Ear Protection: To protect against noise in loud environments.


Safe Workplace Practices

  • Ventilation: Ensure adequate ventilation to avoid inhaling fumes.
  • Fire Safety: Keep fire extinguishers nearby and remove flammable materials from the work area.
  • Lighting: Adequate lighting to ensure clear visibility.
  • Cleanliness: Keep the work area clean and organized.


Handling Welding Equipment Safely

  • Electrical Safety: Avoid working in wet conditions and ensure equipment is properly grounded.
  • Equipment Inspection: Regularly check cables, connections, and the machine itself for any signs of wear or damage.
  • Proper Storage: Store welding equipment and consumables safely when not in use.

How to Use Welder Machine Basic Techniques

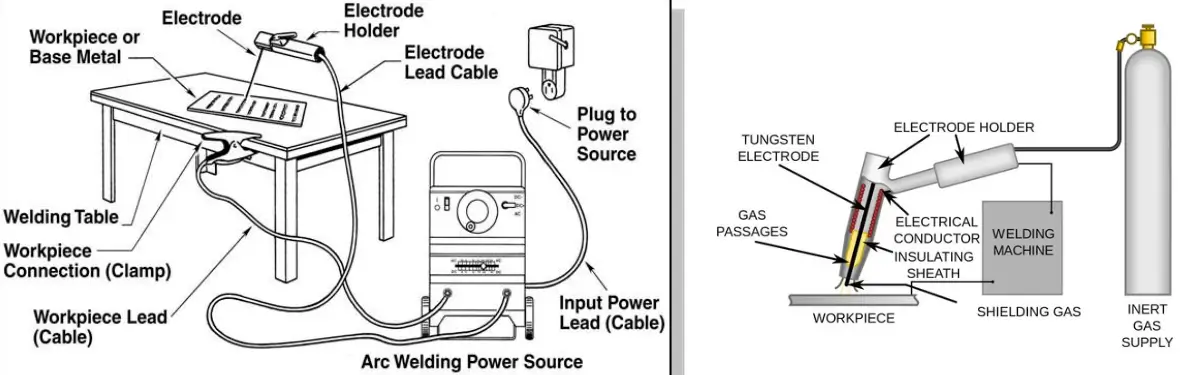

Setting Up the Welding Machine

  1. Read the Manual: Familiarize yourself with the specific model.
  2. Check Connections: Ensure all cables and hoses are securely connected.
  3. Adjust Settings: Set the correct current and voltage according to the material and electrode being used.

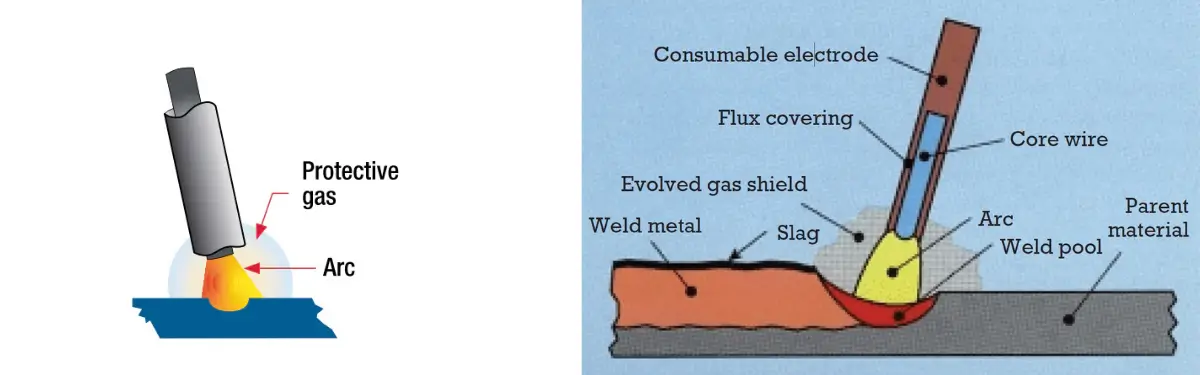

Striking an Arc

  • Tap Method: Tap the electrode lightly against the metal to initiate the arc.
  • Scratch Method: Scratch the electrode along the metal surface like striking a match.


Types of Welding Joints

  • Butt Joint: Two pieces placed end-to-end.
  • Lap Joint: One piece overlaps another.
  • Tee Joint: One piece placed perpendicular to the other.
  • Corner Joint: Two pieces form a right angle.
  • Edge Joint: Edges of two pieces are placed together.


Basic Welding Positions

  • Flat Position: The workpiece is laid flat and welding is performed from above.
  • Horizontal Position: The weld is made on the horizontal plane.
  • Vertical Position: Welding is performed vertically, either up or down.
  • Overhead Position: Welding is performed from underneath the workpiece.
Step-by-Step Guide How to Use Welder Machine

Step-by-Step Guide How to Use Welder Machine

Preparing the Metal

  1. Clean the Surface: Remove rust, paint, and other contaminants.
  2. Fit-Up: Ensure the pieces to be welded fit together correctly.
  3. Tack Welds: Use small welds to hold the pieces in place before final welding.


Setting Up the Welder Machines

  1. Select Electrode/Wire: Choose the appropriate electrode or wire for the material and type of weld.
  2. Set Parameters: Adjust the machine settings (current, voltage, wire feed speed) based on the material thickness and type of weld.


Performing the Weld

  1. Strike the Arc: Use the tap or scratch method to start the arc.
  2. Maintain the Arc: Keep a consistent distance between the electrode and the workpiece.
  3. Move Steadily: Move the electrode or torch at a steady pace to create a uniform weld bead.
  4. Watch the Pool: Monitor the weld pool to ensure proper penetration and bead shape.


Finishing and Inspection

  1. Clean the Weld: Remove slag (in stick welding) and clean the weld area.
  2. Inspect the Weld: Check for defects such as cracks, porosity, and undercut.
  3. Grind if Necessary: Use a grinder to smooth out the weld if needed.

Tips and Tricks for Beginners On How to Use a Welder Machine

Common Mistakes and How to Avoid Them

  • Poor Fit-Up: Ensure parts are properly aligned and clamped.
  • Incorrect Settings: Start with recommended settings and adjust as needed.
  • Rushed Welding: Take your time to ensure quality welds.
  • Improper Electrode Angle: Maintain the correct angle to avoid defects.


Improving Welding Skills

  • Practice: Regular practice to improve technique and consistency.
  • Study: Watch tutorials, read guides, and learn from experienced welders.
  • Feedback: Seek feedback from experienced welders or instructors.

Advanced Welding Techniques

Advanced Joint Designs

  • Double-V Butt Joint: For thicker materials, requires welding from both sides.
  • J-Groove: Used for thicker materials with more complex preparations.


Multi-Pass Welding

  • Layering: Apply multiple layers to build up a strong weld on thicker materials.
  • Weaving Technique: Weave the electrode side-to-side to cover a wider area.


Welding in Difficult Positions

  • Vertical-Up Welding: Moving upward against gravity, requires more control.
  • Overhead Welding: Welding above the head, more difficult due to gravity.

Set Up Your Welder

Now, let’s set up the MIG welder:

  1. Choose the Right Wire and Gas: Select the appropriate wire diameter and type for your project, and ensure you have the correct shielding gas.
  2. Prepare the Welding Machine: Turn on the MIG welder and adjust the settings according to the material thickness and wire type. Refer to the manufacturer’s instructions for specific guidance.
  3. Load the Wire: Open the wire compartment and feed the wire through the drive rollers, ensuring it’s properly aligned.
  4. Insert the Gas Cylinder: Attach the shielding gas cylinder to the welder, making sure it’s securely fastened and the regulator is set to the recommended pressure.

Prepare Your Workpiece

Before welding, it’s essential to prepare the workpiece properly:

  1. Clean the Metal: Remove any rust, paint, or debris from the surface using a wire brush or grinder. Cleanliness is crucial for a strong weld.
  2. Secure the Workpiece: Clamp or secure the metal pieces together in the desired position, ensuring they’re aligned correctly.

Post-Welding Cleanup

After welding, there are a few final steps to complete:

  1. Inspect the Weld: Check the weld for any defects such as cracks, porosity, or incomplete fusion. Grind down any rough spots or high points using a grinder.
  2. Remove Spatter: Use a wire brush or chipping hammer to remove any weld spatter from the surface.
  3. Finish and Protect: If necessary, apply a coat of paint or protective finish to the welded area to prevent corrosion.

Conclusion

Congratulations! You’ve learned How to Use Welder Machine, from setup to welding techniques. Remember, practice makes perfect, so keep honing your skills and exploring new projects. With patience and dedication, you’ll master the art of welding in no time. Stay safe, and happy welding!
