Tig Cooler, Tig Welder Torch Water Cooling system

Tig Cooler is a cornerstone of modern manufacturing, pivotal in initiatives varying from automotive and aerospace to building and shipbuilding. Among the various welding techniques, Tungsten Inert Gas (TIG) welding stands out for its accuracy, versatility, and power to build high-quality welds. However, TIG welding generates significant heat, damaging the equipment and affecting the weld quality if not properly managed. This is where TIG welder torch water cooling systems come into play.

The WRC-300A TIG Cooler is a sophisticated water cooling system designed to address the high thermal loads associated with TIG welding. With a 10-litre water capacity, a rated water flow of 7 to 12 litres per minute, and an integrated flow alarm, this system ensures that your welding torch remains cool, enhancing its lifespan and performance. Operating at 110V, the WRC-300A is powerful and efficient, making it an essential addition to any professional welder’s toolkit.

Specifications

Water Capacity: 10 liters
Rated Water Flow: 7 to 12 litres per minute
Flow Alarm: Integrated for safety
Power Supply: 110V
Cooling Capacity: Designed to handle high thermal loads
Dimensions: Compact and portable design for ease of use
Weight: Lightweight for easy transport and setup.

Tig Cooler, Tig Welder Torch Water Cooling system
Tig Cooler, Tig Welder Torch Water Cooling system

Key Features of the Tig Cooler

The TIG Cooler WRC-300A stands out from other water cooling systems due to several unique features:

  • Flow Alarm: This built-in safety feature alerts the user if the water flow rate drops below a certain level, preventing damage to the torch and ensuring consistent cooling performance.
  • High Capacity: With a 10-litre water reservoir, the WRC-300A can handle extended welding sessions without frequent refilling.
  • Efficient Cooling: The system’s design maximizes heat dissipation, ensuring the torch remains cool during intensive welding.
  • Durable Construction: Made from high-quality materials, the WRC-300A is built to resist the rigours of industrial use.
  • User-Friendly Interface: Easy-to-use controls and clear indicators make operating the system straightforward.

Pros

High Cooling Capacity: A 10-litre water reservoir supports extended welding sessions without frequent refills.

Adjustable Flow Rate: Allows customization between 7-12 litres per minute to match various welding needs.

Flow Alarm: The integrated safety feature alerts users to insufficient water flow, preventing damage.

Durable Construction: Built from high-quality materials suitable for industrial use.

Cons

Initial Cost: More increased upfront costs have reached some other models.

Maintenance Requirements: Periodic maintenance, such as cleaning and water substitute, is necessary to ensure optimal performance.

Portability: While portable, the size and weight may still pose a challenge for frequent transport.

Overview of TIG Welder Torch Water Cooling Systems

What is a Water Cooling System?

A water cooling system for TIG welding consists of a pump, a reservoir, and hoses that circulate water around the welding torch. The water absorbs the heat generated during welding and is cooled before recirculating. This continuous flow of cool water keeps the torch and other components at a safe operating temperature.

Components of a Water Cooling System

  1. Reservoir: Holds the cooling water. The size of the reservoir impacts the system’s ability to handle extended welding sessions.
  2. Pump: Circulates the water through the system. A powerful pump ensures efficient water flow.
  3. Hoses: Transport water between the reservoir, pump, and welding torch. High-quality hoses prevent leaks and ensure smooth water flow.
  4. Heat Exchanger: In some advanced systems, heat exchangers cool the water before recirculating.
  5. Flow Alarm: Alerts the user if the water flow rate drops below a certain level, preventing potential damage to the equipment.

Types of Cooling Systems

Two primary types of cooling systems are used in welding: air and water. Air cooling relies on fans to dissipate heat, while water cooling uses a liquid medium. Water cooling systems are generally more effective than air cooling systems, particularly for high-temperature applications like TIG welding. They can dissipate heat more efficiently and maintain a more consistent temperature, which is critical for precision welding tasks.

Advantages of Water Cooling Systems

  • Efficient Heat Dissipation: Water has a higher heat capacity than air, making it more effective at absorbing and dissipating heat.
  • Consistent Temperature Control: Water cooling systems maintain a stable temperature, which is crucial for high-quality welds.
  • Extended Torch Life: By preventing overheating, water cooling systems extend the lifespan of the welding torch and other components.
  • Reduced Downtime: Water cooling systems allow longer welding sessions without frequent breaks to cool down the equipment.

Innovations in the TIG Cooler WRC-300A

The TIG Cooler WRC-300A incorporates several innovative technologies that enhance its performance and reliability:

  • Advanced Pump Technology: The pump is designed for high efficiency and long lifespan, ensuring reliable water circulation.
  • Optimized Water Flow: The system is engineered to provide a consistent flow rate, critical for maintaining stable torch temperatures.
  • Integrated Diagnostics: The system includes diagnostic features that help identify and troubleshoot potential issues, reducing downtime and maintenance costs.

Water Capacity and Flow Rate

Importance of Water Capacity

The water capacity of a cooling system is a critical factor in its overall performance. A more extensive water reservoir means the system can absorb and dissipate more heat before the water temperature becomes too high. The 10-litre capacity of the TIG Cooler WRC-300A ensures that it can handle long welding sessions without frequent refilling, making it ideal for professional use.

Detailed Analysis of Flow Rate

Another important specification is the rated water flow of 7 to 12 litres per minute. A higher flow rate ensures the water circulates quickly through the system, efficiently removing heat from the torch. The adjustable flow rate allows the user to customize the cooling performance based on the specific requirements of the welding task at hand. The flow alarm provides an additional layer of safety by alerting the user if the flow rate drops below a safe level, preventing potential damage to the equipment.

Balancing Capacity and Flow Rate

Balancing the water capacity and flow rate for optimal performance is essential. The 10-litre capacity of the TIG Cooler WRC-300A is well-suited to its flow rate range, providing sufficient water volume to absorb heat while maintaining a steady flow. This balance ensures the system can handle high thermal loads without overheating or requiring frequent maintenance.

Impact on Weld Quality

Consistent and efficient cooling directly impacts the quality of the weld. By maintaining a stable torch temperature, the TIG Cooler WRC-300A ensures that the weld pool remains stable, reducing the risk of deficiencies such as porosity, cracking, and warping. This results in firmer, cleaner welds with better aesthetic qualities.

Installation and Setup

Preparing for Installation

Before installing the TIG Cooler WRC-300A, it is essential to ensure that all necessary components are present and in good condition. This includes checking the water reservoir, hoses, and pump for any signs of damage. It is also critical to choose a convenient location for the system, preferably in a well-ventilated area away from direct heat sources.

Step-by-Step Installation Guide

  1. Position the Cooler: Place the TIG Cooler WRC-300A in a stable and secure location. Ensure that it is close enough to the welding torch to allow easy connection of the hoses.
  2. Connect the Hoses: Attach the inlet and outlet hoses to the appropriate ports on the cooler and the welding torch. Make sure the connections are tight to prevent leaks.
  3. Fill the Reservoir: Fill the 10-litre reservoir with clean, distilled water. Sidestep tap water, as it can include impurities that may damage the system.
  4. Power Up: Connect the cooler to a 110V power supply and turn it on. Check for any leaks and ensure that the water is circulating correctly.
  5. Adjust the Flow Rate: Use the control panel to set the desired flow rate. Monitor the system for a few minutes to ensure it operates correctly.

Initial Testing

After installation, performing an initial test is essential to ensure the system is functioning correctly. This involves running the cooler briefly and checking for any issues such as leaks, insufficient water flow, or unusual noises. If any problems are seen, they should be managed immediately to prevent damage to the equipment.

TIG Cooler Safety Precautions

Safety Precautions

When installing and setting up the TIG Cooler WRC-300A, it is essential to follow all safety guidelines. This includes wearing appropriate individual (PPE), such as gloves and security glasses, to prevent injuries. Additionally, confirm that all electrical contacts are correctly grounded and the cooler is placed on a stable surface to avoid tipping or other accidents.

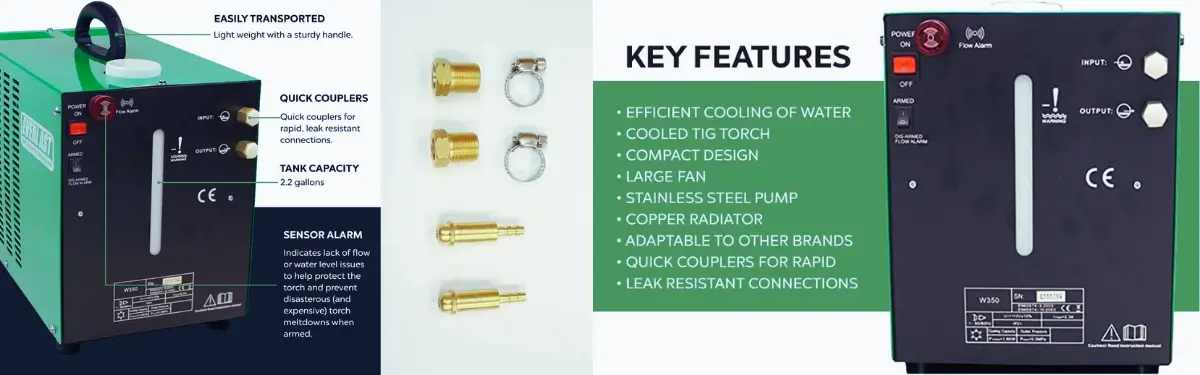

Operating the TIG Cooler WRC-300A

Daily Operation

Operating the TIG Cooler WRC-300A daily is straightforward. The following steps outline the typical workflow:

  1. Check Water Levels: Before starting the welding session, check the water level in the reservoir and top it up if necessary.
  2. Power On: Turn on the cooler and set the desired flow rate.
  3. Monitor Performance: Keep an eye on the flow alarm and water temperature to ensure the system performs as expected.
  4. Power Off: After the welding session, turn off the cooler and check the water level. If necessary, empty and clean the reservoir.

Adjusting Flow Rate

The flow pace can be adjusted using the control panel on the cooler. It is essential to set the flow rate based on the exact needs of the welding task. For example, more intensive welding operations may require a higher flow rate to ensure adequate cooling. The flow alarm provides an additional safety measure by alerting the user if the flow rate drops below a safe level.

Troubleshooting Common Issues

Despite its robust design, the TIG Cooler WRC-300A may occasionally encounter issues. Common problems and their solutions include:

  • Insufficient Water Flow: Check for blockages in the hoses or pumps. Ensure that the water level in the reservoir is adequate.
  • Leaks: Inspect all connections and hoses for signs of wear or damage. Replace any faulty components.
  • Flow Alarm Activation: If the flow alarm is triggered, check the water flow rate and adjust if necessary. Ensure that the pump is functioning correctly.
  • Unusual Noises: If the cooler makes unusual noises, check the pump and hoses for blockages or damage.

Maximizing Efficiency

To maximize the efficiency of the TIG Cooler WRC-300A, operating the system correctly and maintaining it regularly is essential. This includes:

  • Regularly Checking and Cleaning the Reservoir: Keeping the reservoir clean prevents the buildup of impurities that can affect cooling performance.
  • Monitoring Water Quality: Using distilled water helps prevent the buildup of minerals and other impurities.
  • Inspecting Hoses and Connections: Regular inspections help identify and manage possible issues before they become severe.
  • Maintaining Optimal Flow Rate: Adjusting the flow rate based on the specific welding task ensures efficient cooling and prevents overheating.

Maintenance and Care

Regular Maintenance

Regular maintenance is essential to keep the TIG Cooler WRC-300A in optimal condition. Critical maintenance tasks include:

  • Cleaning the Reservoir: Regularly clean the water reservoir to prevent the advertisement of impurities that can affect performance.
  • Inspecting Hoses and Connections: Check hoses and connections for signs of wear or damage. Replace any faulty components immediately.
  • Checking the Pump: Ensure that the pump is functioning correctly and there are no blockages.
  • Monitoring the Flow Alarm: Regularly test the flow alarm to ensure it functions properly.

Common Maintenance Issues and Solutions

  • Clogged Hoses: Regularly inspect and clean the hoses to prevent blockages. Replace hoses if necessary.
  • Pump Malfunction: Check the pump for any signs of damage or wear. If the pump is not working correctly, it may need to be repaired or replaced.
  • Water Quality Issues: Use distilled water to prevent the buildup of minerals and other impurities. Regularly replace the water to maintain optimal cooling performance.

Maintenance Schedule

Creating a supervision schedule supports ensuring that all necessary tasks are completed regularly. A typical maintenance schedule might include:

  • Daily: Check water levels and inspect hoses and connections.
  • Weekly: Clean the reservoir and monitor the flow alarm.
  • Monthly: Perform a thorough system inspection, including the pump and hoses.
  • Biannually: Replace the water and perform a complete system check.
  • Annually: Have the system professionally serviced.

Benefits of Using the TIG Cooler WRC-300A

Enhanced Torch Lifespan

One of the primary benefits of using the TIG Cooler WRC-300A is the enhanced lifespan of the welding torch. Keeping the torch cool prevents overheating and reduces wear and rip, resulting in more extended service life and lower replacement costs.

Improved Weld Quality

Consistent cooling provided by the TIG Cooler WRC-300A ensures that the torch operates at a stable temperature, improving weld quality. This is particularly important for precision welding tasks where temperature fluctuations can affect the integrity of the weld.

Increased Efficiency

The TIG Cooler WRC-300A allows extended welding sessions without frequent breaks to cool down the torch. This boosted efficiency, resulting in higher productivity and more profitable overall performance.

Safety

The integrated flow alarm and durable construction of the TIG Cooler WRC-300A enhance safety by preventing potential damage to the torch and other components. This reduces the gamble of accidents and guarantees a safer working environment.

Cost Savings

By extending the lifespan of the welding torch and improving weld quality, the TIG Cooler WRC-300A can result in significant cost savings over time. Reduced downtime and maintenance requirements further contribute to lower overall operating costs.

Versatility

The TIG Cooler WRC-300A suits various welding applications, from industrial and automotive welding to artistic and decorative work. Its versatile design and adjustable flow rate make it an ideal choice for different welding accessories.

Applications and Use Cases

Applications and Use Cases

Industrial Welding

The TIG Cooler WRC-300A is ideal for industrial welding applications with high thermal loads and extended welding sessions. Its robust design and high cooling capacity make it suitable for heavy-duty use in manufacturing, construction, and other industrial settings.

Automotive and Aerospace

In the automotive and aerospace enterprises, precision and quality are paramount. The TIG Cooler WRC-300A provides the consistent cooling needed for high-quality welds, making it an essential tool for these applications. Its ability to handle high thermal loads and extended welding sessions ensures that critical components are welded precisely.

Artistic and Decorative Welding

The TIG Cooler WRC-300A ensures that the torch remains calm and stable for artistic and decorative welding, allowing precise and intricate designs. This is particularly important for tasks that require a high level of detail and accuracy. The system’s portability and ease of use make it a valuable tool for artists and artisans.

Repair and Maintenance

The TIG Cooler WRC-300A is also well-suited for repair and maintenance work, where the ability to handle various welding tasks is essential. Its reliable cooling performance ensures that the welding torch remains in optimal condition, reducing the risk of damage and ensuring high-quality repairs.

Specialized Welding Applications

In addition to standard welding tasks, the TIG CoolerWRC-300A can be used for specialized applications such as welding exotic materials, performing complex joint configurations, and working in challenging environments. Its robust design and advanced cooling capabilities make it an excellent choice for these demanding applications.

User Experiences and Testimonials

Professional Welders

Professional welders have praised the TIG Cooler WRC-300A for its reliable performance and ease of use. Many have noted the significant improvement in torch lifespan and weld quality since incorporating the system into their workflow. The consistent cooling provided by the WRC-300A has allowed them to achieve higher precision and efficiency in their work.

Industrial Applications

The TIG Cooler WRC-300A has proven to be a valuable asset in industrial settings. Users have reported increased productivity and reduced downtime thanks to the system’s efficient cooling and robust design. The ability to take high thermal packs and extended welding sessions has made the WRC-300A a preferred choice for many industrial applications.

Artistic Welders

Artistic welders have highlighted the TIG Cooler WRC-300A’s ability to maintain a stable torch temperature, allowing for greater precision and control in their work. The system’s portability and ease of use have also been noted as key benefits. Many artists have found that the WRC-300A enhances their power to create complex and detailed designs.

Repair and Maintenance Professionals

Professionals in the repair and maintenance industry have found the TIG Cooler WRC-300A a reliable and versatile tool. Its robust cooling performance ensures that the welding torch remains in optimal condition, reducing the risk of damage and ensuring high-quality repairs. The system’s ease of use and maintenance have also been praised.

Frequently Asked Questions(FAQ)

What is the ideal water flow rate for TIG welding?

The ideal water flow rate depends on the welding task and the heat generated. The TIG Cooler WRC-300A’s adjustable flow rate of 7 to 12 litres per minute provides flexibility to accommodate different requirements. A higher flow rate may be necessary for more intensive welding tasks to ensure adequate cooling.

How often should the water be replaced?

It is recommended that the water in the reservoir be replaced at least once every three months or more frequently if the system is used heavily. Regularly replacing the water helps maintain optimal cooling performance and prevents the buildup of impurities.

Can the WRC-300A be used with other welding torches?

The TIG Cooler WRC-300A is compatible with many TIG welding torches. However, it is essential to ensure the connections are compatible and the system is set up correctly to prevent leaks and provide efficient cooling. Consult the manufacturer’s guidelines for specific compatibility information.

What type of water should be used in the cooler?

Distilled water is recommended in the TIG Cooler WRC-300A to prevent the buildup of minerals and other impurities affecting performance. Avoid tap water, as it may include contaminants that can damage the system.

How do I know if the flow alarm is working correctly?

Regularly test the flow alarm to ensure it is functioning correctly. This can be done by intentionally reducing the water flow rate and checking if the alarm is triggered. If the alarm does not activate, consult the user manual or get the manufacturer for troubleshooting.

What should I do if the system leaks?

If the TIG Cooler WRC-300A develops a leak, immediately turn off the power and check all connections and hoses for signs of wear or damage. Replace any faulty parts and guarantee that all connections are tight. If the leak persists, contact the manufacturer for further assistance.

Is the TIG Cooler WRC-300A portable?

Yes, the TIG Cooler WRC-300A is designed to be portable and easy to transport. Its tight size and weightless construction make it suitable in various locations, whether in a workshop or a job site.

How do I maintain the system during periods of inactivity?

If the TIG Cooler WRC-300A will not be used for an extended period, it is essential to drain the water from the reservoir and hoses to prevent stagnation and potential damage. Store the system in a cool, dry place and protect it to rescue it from dust and debris.

Conclusion

The TIG Cooler WRC-300A TIG cooler is a robust and reliable water cooling system designed to meet the demanding requirements of professional welding. With its 10-litre water capacity, adjustable flow rate, and integrated flow alarm, the WRC-300A provides efficient and consistent cooling, enhancing the lifespan of the welding torch and improving weld quality. Whether you are a professional welder, an industrial user, or an artistic welder, the WRC-300A is an invaluable tool to help you achieve better results and work more efficiently.

Investing in a high-quality water cooling system like the TIG Cooler WRC-300A is essential for anyone serious about TIG welding. The benefits of enhanced torch lifespan, improved weld quality, increased efficiency, and safety make it a worthwhile addition to any professional welder’s toolkit. By understanding and adequately maintaining the WRC-300A, users can enjoy reliable and efficient cooling performance for years.
